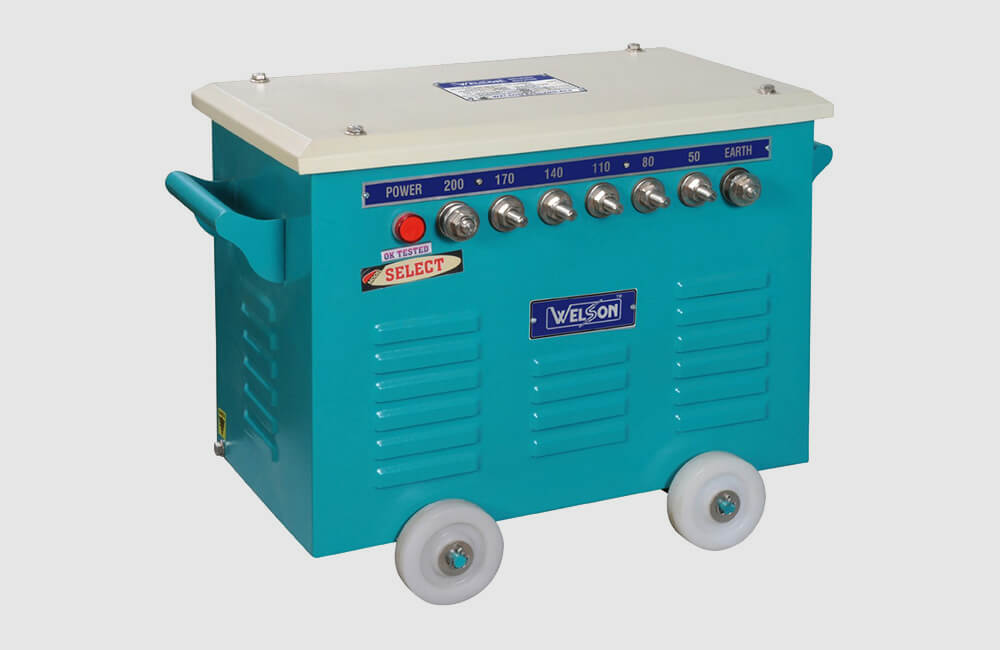

LIGHT DUTY (STUD TYPE) ARC WELDING MACHINE
Welson Welding – (Rajkot, Gujarat) “WELSON stud type light weight welding machines are built with compact design and attractive look, Effective for repair and maintenance jobs in medium duty cycles. it’s also useful for light production jobs in farms and workshop. The products are made with high grade materials and best finishing, gives superb performance, trouble free service for long period and also make it energy saving. The machine tested under strict quality control measures.
Features & Applications
Easy to Operate
High grade materials
Superb performance
Powder Coated Body
Morden Look and Novel Design
Trouble free service for long period
Fabrication
Glass Industry
Plastic Industry
Small Workshop
Repairing Works
Ceramic industry
Construction Sites
Kitchenware Industry
Small Workshop
College Workshops
Automobile industry
Sheet Metal Industry
Wood Working Industry
Engineering Goods Production Workshop
Every Small, Medium And Large Scale machining Industry
Specifications
| Particulars | Light Duty (Stud Type) Welding Machine | ||
|---|---|---|---|
| Model | 150A WSS | 200A WSS | 250A WSS |
| Input Supply | 230/440 | 230/440 | 230/440 |
| Phase | 1 / 2 | 1 / 2 | 1 / 2 |
| Frequency | 50 Hz | 50 Hz | 50 Hz |
| Welding Current Range With Low & High Range Selection | 45-150 A | 50-200 A | 50-250 A |
| Insulation Class | A | A | A |
| Open Circuit Voltage (OCV) | 45 | 50 | 50 |
| Max. Continuous Hand Welding Current at 60% Duty Cycle | 125 | 170 | 220 |
| Welding Electrode Size Min. | 2 MM | 2 MM | 2.5 MM |
| Welding Electrode Size Max. | 3.15 MM | 3.15 MM | 3.15 MM |
| Cooling | Air Cooled | Air Cooled | Air Cooled |
| Approx. Dimensions in mm | H–400
L – 560 W– 385 |
H – 480
L – 660 W– 400 |
H–500
L –685 W–435 |
| Approx. Weight | 42 Kg | 53 Kg | 61 Kg |
